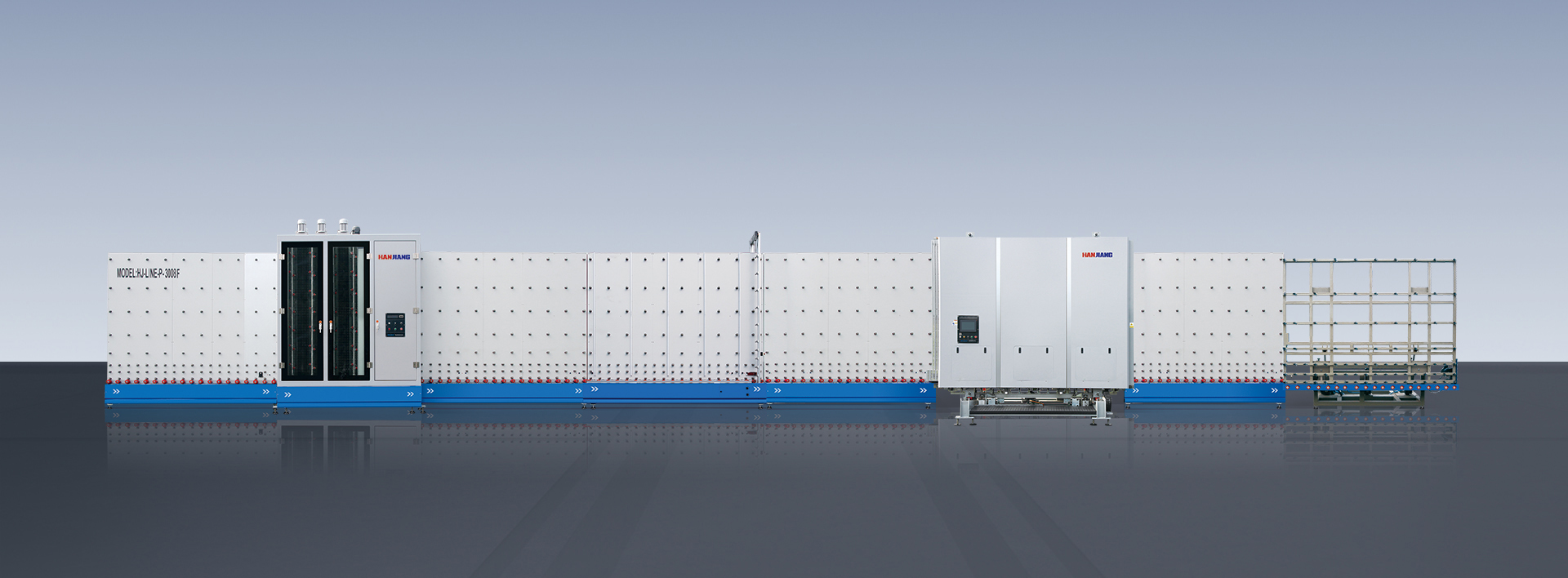

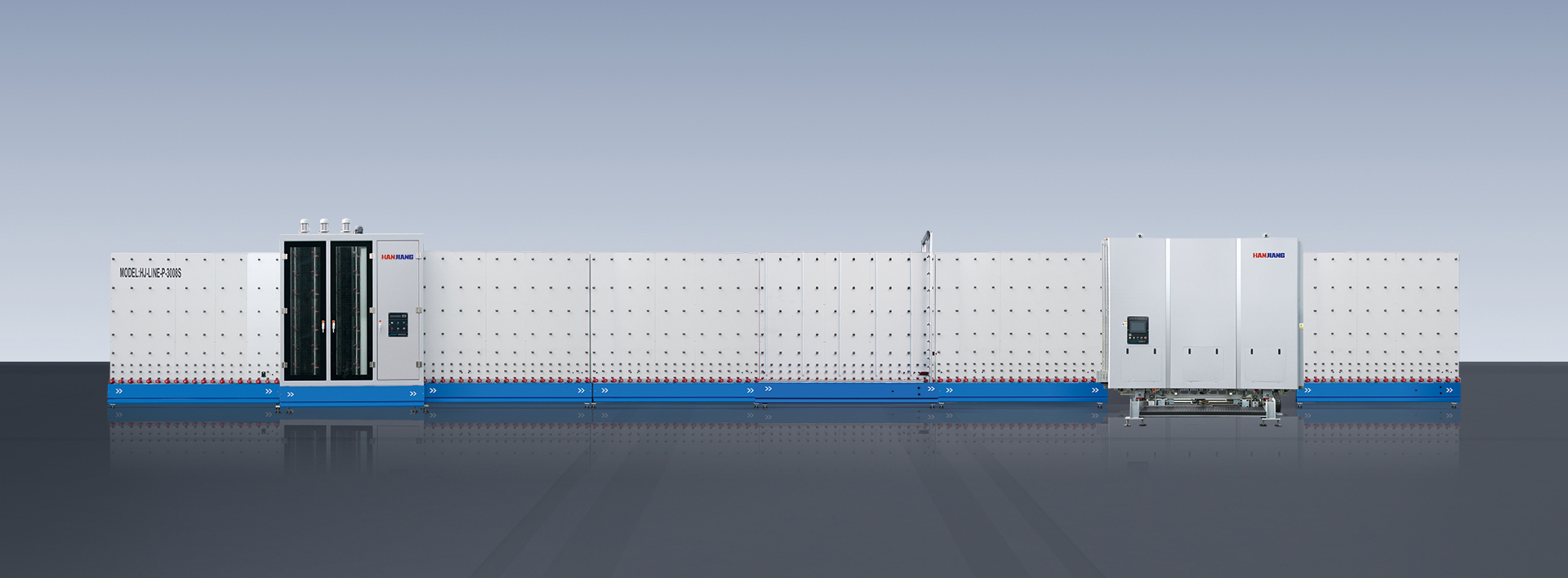

Introduction of assemble in press IG line

Assemble in press IG line can process double glass, triple glass, 1~4 side step IG or offset IG (Insulated glass). The first glass is automatically conveyed through washing-drying and inspecting and stop in the press machine at the same time suctioned to the front panel. The second glass stops at the spacer attaching section and position automatically. After put spacer frame then the second continues to press to be assembled and pressed automatically. The IGU comes out and first sealing finish.

Feature

PLC control system with touch screen interface
Perfect washing performance for on/off line Low-E glass
Air knives automatic adjustment according to the thickness of glass
Optimal energy saving system with numerical intermittent working style
Inverter driving for Low-E brush rotatory speed
Automatic positioning system for spacer frame (*option)

Automatic positioning system for glass
Servo and Torque driving system for accurate pressing
Assembly-in-press
Automatic and accurate positioning for step IG processing
Automatic and accurate positioning for three-layer IG processing
Remote communication function (*option)

Technical Data

Max glass size：2500×3000mm (2000×2500mm)
Min glass size：300 × 450mm
Insulating glass thickness：10-48 mm
Washing glass thickness：3-19mm
Washing speed：0-10m/min
Low-E brush：6 units (3 units for Low-E)

Conveying speed：45 m/min
Press suction：6kg/EA
Power：3P 380V/1P+N 220V 50Hz 38kW
Air source：Air quantity: 0.8m3/ min Air pressure: 0.7MPa
Water conductivity：≤30μs/cm

Customized IG line- insulated glass processing size

1500 Series

1500 × 2000mm

2000 Series

2000 × 2500mm

2500 Series

2500 × 3600mm / 2500 × 4000mm / 2500 × 5000mm / 2500 × 6000mm / 2500 × 7200mm / 2500 × 8000mm / 2500 × 9000mm / 2500 × 12000mm

3000 Series

3000 × 3600mm / 3000 × 4000mm / 3000 × 5000mm / 3000 × 6000mm / 3000 × 7200mm / 3000 × 8000mm / 3000 × 9000mm / 3000 × 12000mm

3300 Series

3300 × 3600mm / 3300 × 4000mm / 3300 × 5000mm / 3300 × 6000mm / 3300 × 7200mm / 3300 × 8000mm / 3300 × 9000mm / 3300 × 12000mm

Insulating Glass Type

Types of insulated glass or double glass or multi later IGU

　Double glazing

　Triple glazing

　One side step

　Two side step

　Three side step

　Four side step

Application Area

Architectures

Window & Door, Curtain wall

Transportation tools

High-speed rail glass, side window

Home appliance

Refrigerator glass

Solar glass
